Electric Hospital Bed — Four-Actuator Adjustable Model

Description

Electric hospital bed with four-actuator adjustment

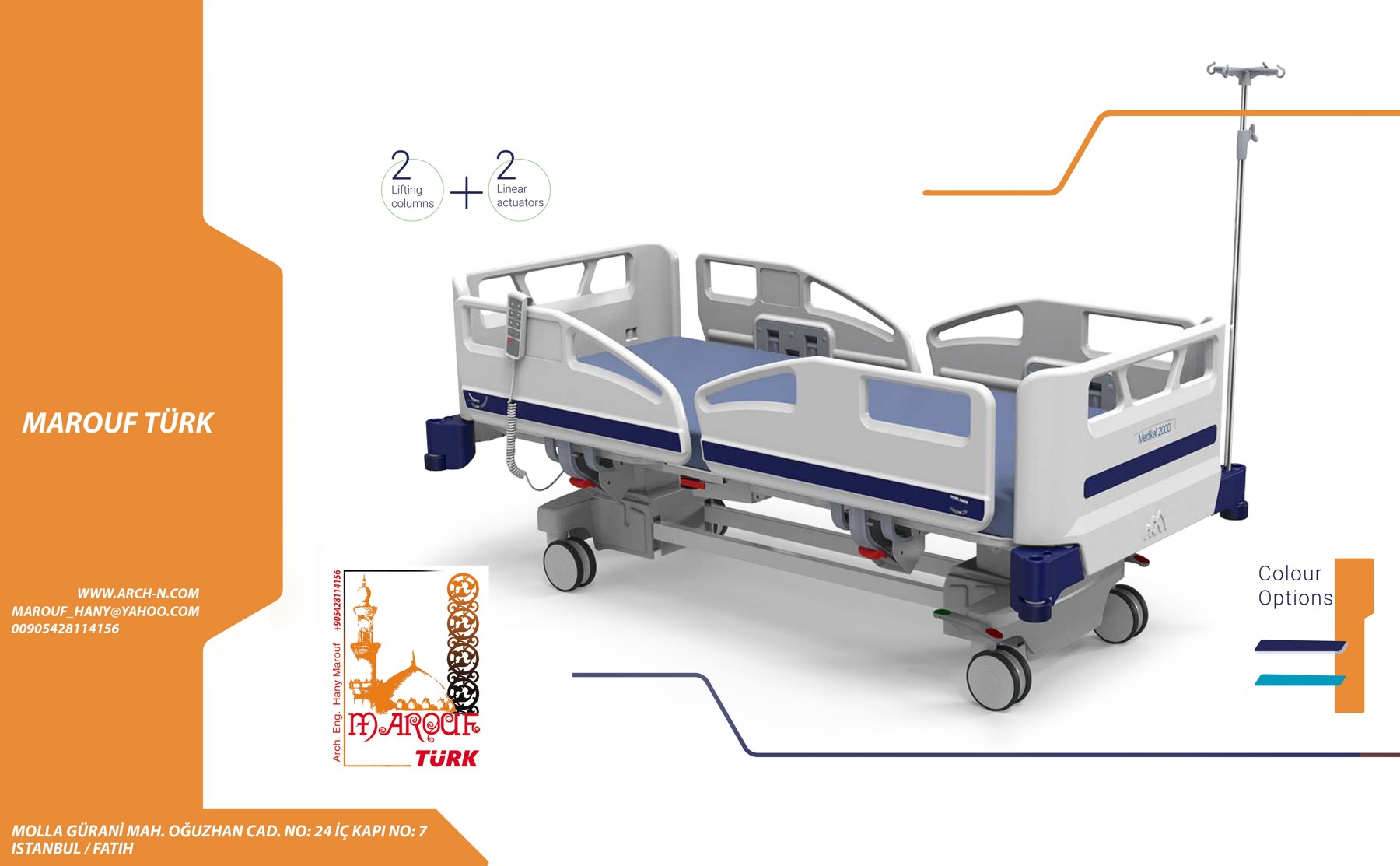

This adjustable hospital bed is presented in the Marouf Türk clinic-bed catalogue with a four-section ABS lying surface, removable polypropylene head and foot boards, and a covered base. It supports height, backrest, leg-rest and Trendelenburg adjustments through the specified actuator system.

Catalogue specifications

• Overall dimensions: 103.5 cm wide × 212.5 cm long.
• Height adjustment: 48–88 cm; lying surface: 85 × 190 cm.
• Backrest angle: 70°; leg-rest angle: 30°.
• Trendelenburg and anti-Trendelenburg: 12° each.
• Catalogue safe working capacity: 230 kg; this is not a stated maximum patient weight.
• Four actuators; operating supply: 220–240 V AC.
• 150 mm swivel castors with central braking, hand control, nurse panel with function locking, built-in battery and height-adjustable IV pole.

Configuration options

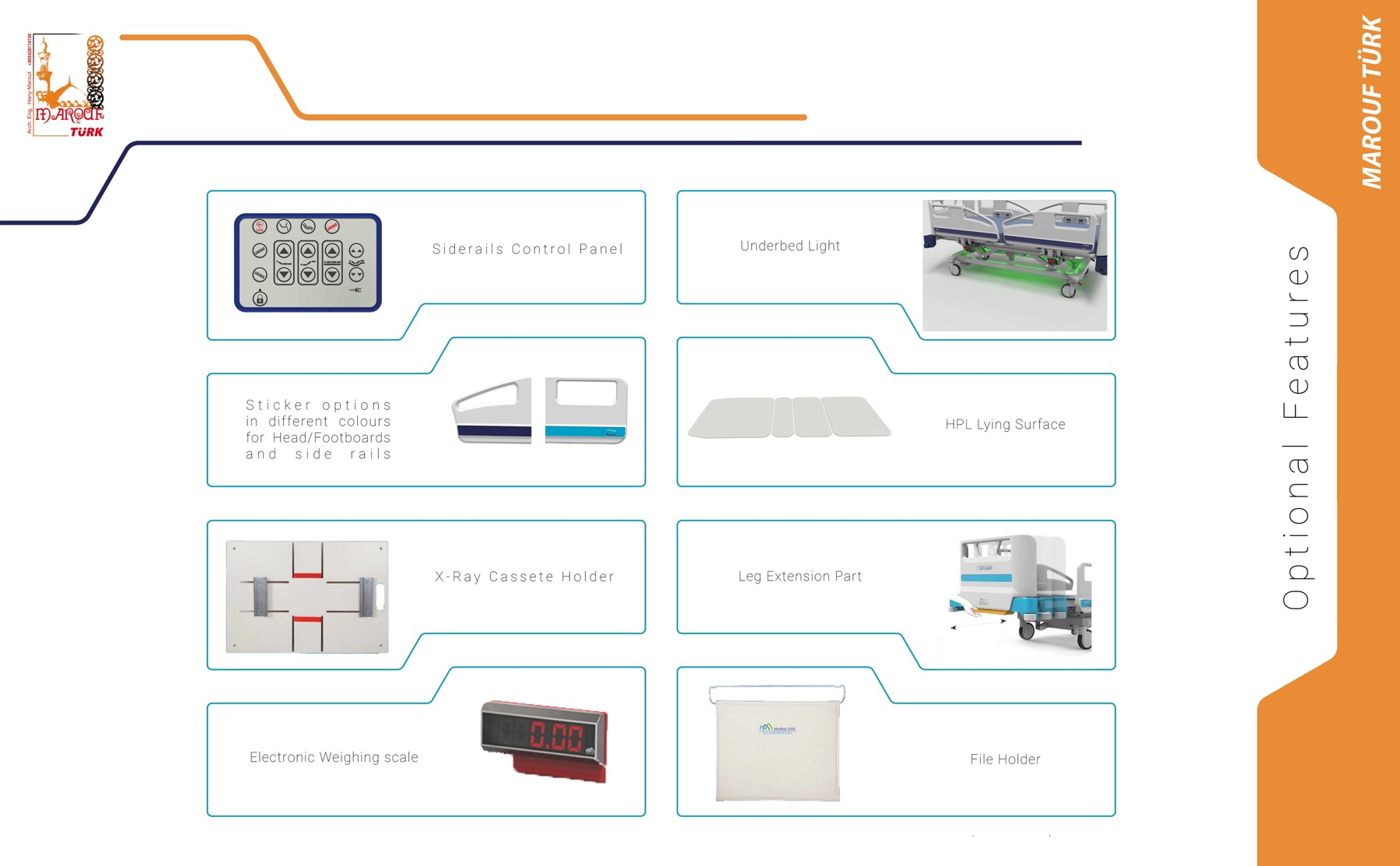

The catalogue lists optional side-rail controls, underbed lighting, HPL lying surface, X-ray cassette holder, leg extension, electronic weighing scale, file holder and colour details. Specify the required options when requesting a quotation; they are not all included as standard.

Request a quotation

Send the quantity, destination, required mattress and accessories, electrical requirements and procurement specifications. Final configuration, applicable documentation, availability and delivery terms are confirmed in the offer.

View the clinic-bed catalogue
