PVC Roof Tile Sheets & Accessories

Descrizione

PVC roof tile sheets provide a profiled roof covering with the appearance of traditional tiles. The Marouf Türk catalogue presents two sheet widths, matching roof accessories, colour options and illustrated installation details for different supporting structures.

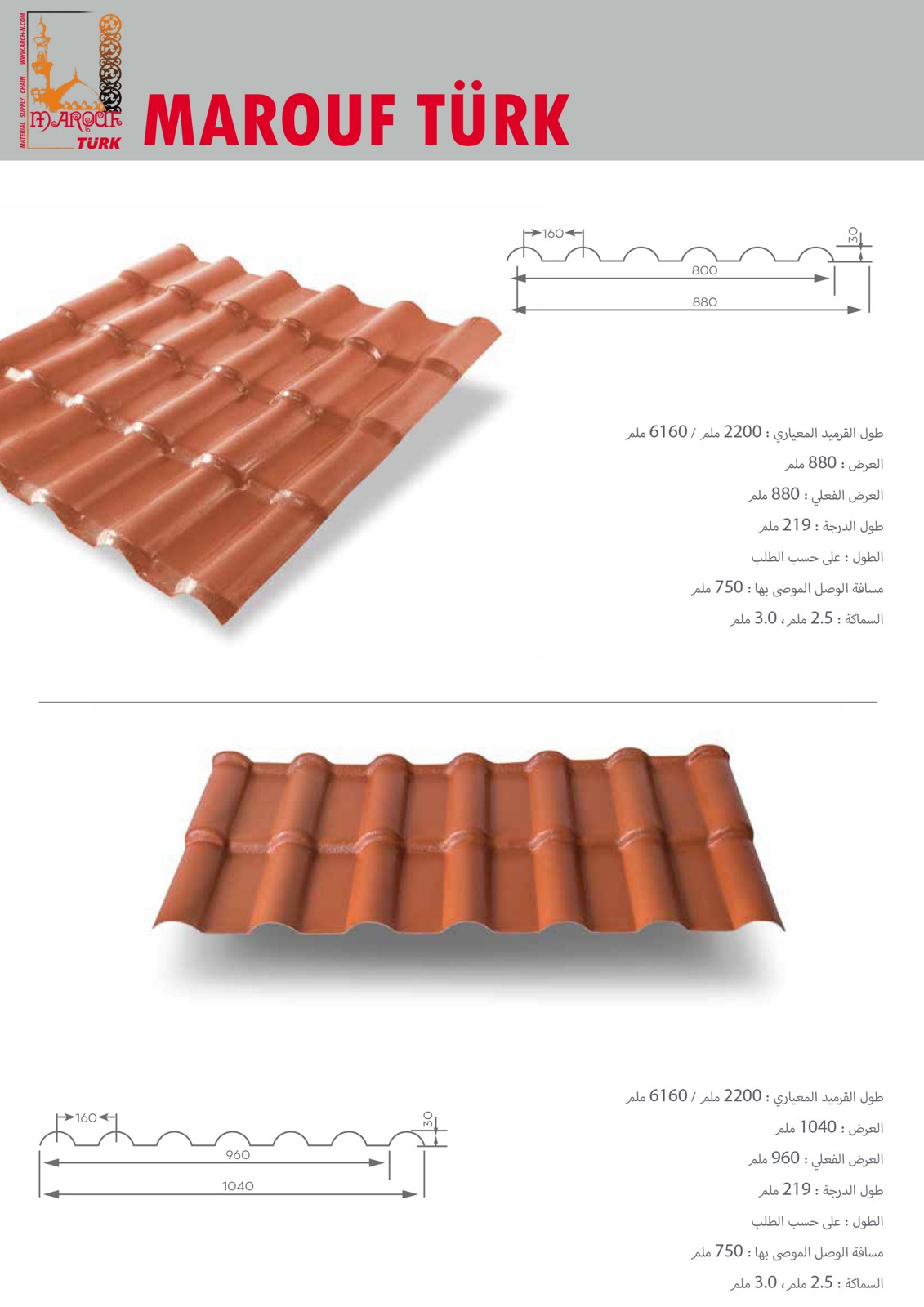

Sheet formats

• Overall widths: 880 mm and 1040 mm profiles are shown.
• 1040 mm profile: the catalogue gives a 960 mm effective covering width.
• Standard lengths: 2200 mm and 6160 mm are listed, with length enquiries also available on request.
• Thickness options: 2.5 mm and 3.0 mm.
• Tile step: 219 mm is listed for the illustrated profiles.

Confirm the selected profile, net covering dimensions, overlaps and available lengths before preparing the final quantity schedule. Sheet thickness and supporting-frame design should be selected for the project conditions.

Roof accessories

The illustrated system includes upper ridge pieces, hip or side ridge pieces, three-way junctions at 120° and 160°, wall-connection flashings, edge trims, ridge end closures and valley pieces. These components should be scheduled alongside the sheets to suit ridges, hips, abutments and changes in roof direction.

Colours and applications

The catalogue shows red, grey, blue, terracotta and green as standard colour references, with photographs of pitched roofs in terracotta and green. Confirm the final colour against a current physical sample because printed and screen colours can differ.

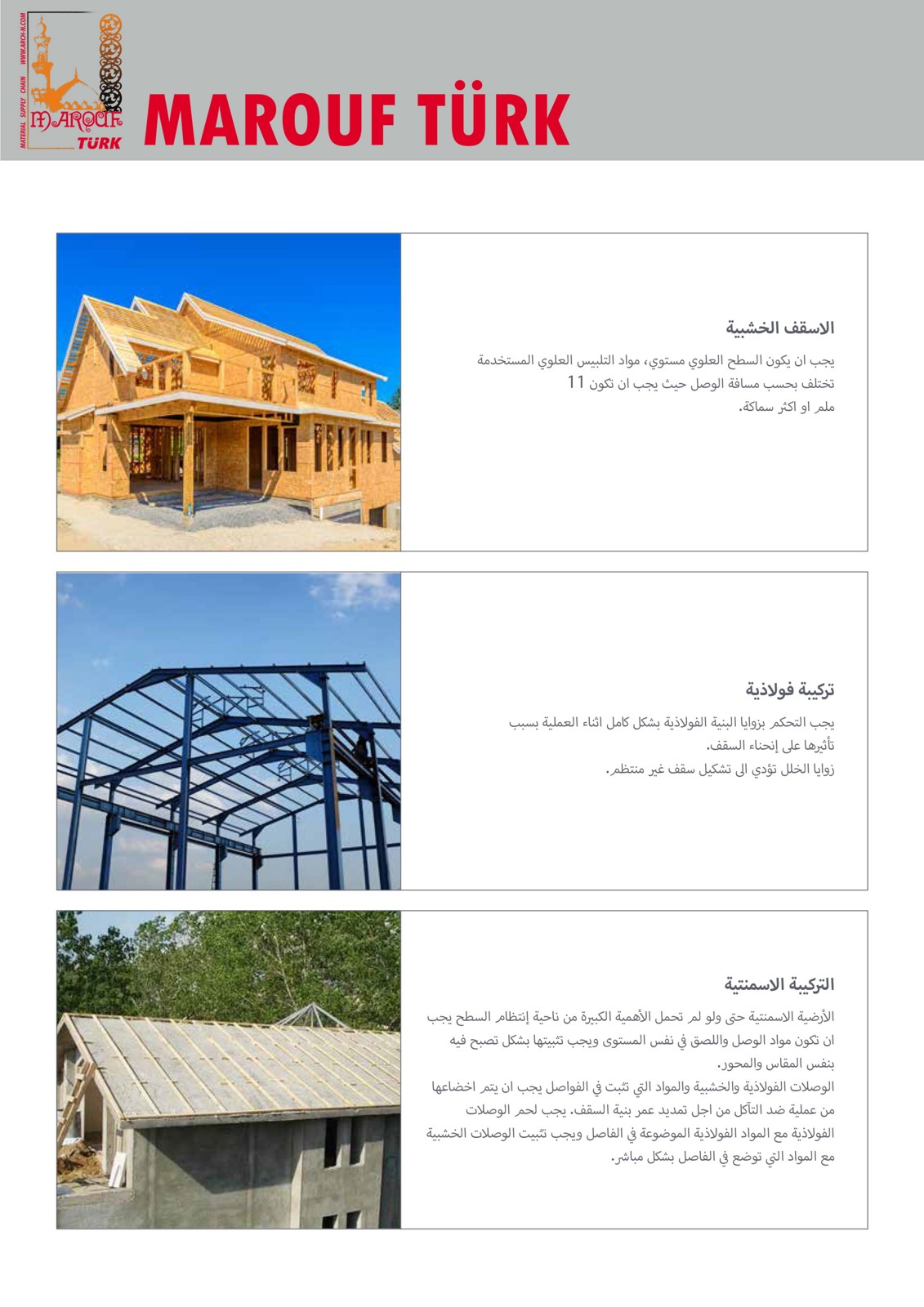

Illustrated support arrangements include timber, steel and concrete structures. Roof pitch, support spacing, fastener pattern, drainage and movement allowances require coordination with the chosen roofing system and the building design.

Installation details

The guide includes sheet laying, ridges, hip roofs, valleys, eaves and chimney junctions. Use the current installation instructions for the selected profile, including the correct fixing components, overlaps and waterproofing details around penetrations. The complete roof assembly determines the finished performance.

Request a roofing quotation

Send roof plans, slopes, dimensions, support material and spacing, location and exposure conditions, preferred colour and thickness, and required delivery date. Include ridge, hip, valley, wall-junction and penetration lengths so that the accessory schedule can be coordinated.

Request current technical documentation and any project-required fire, weathering or other test reports for the exact sheet and assembly. Confirm availability, final dimensions and installation requirements with the quotation.

View the PVC roof tile sheet catalogue.
