Steel Tubes & Roll-Formed Profiles

Descrizione

Steel tubes and roll-formed profiles from the Marouf Türk catalogue cover several distinct product families: hollow sections, ceiling and wall profiles, plaster corner beads and steel reinforcement profiles for PVC systems. The catalogue also presents coil slitting and sheet cutting capabilities.

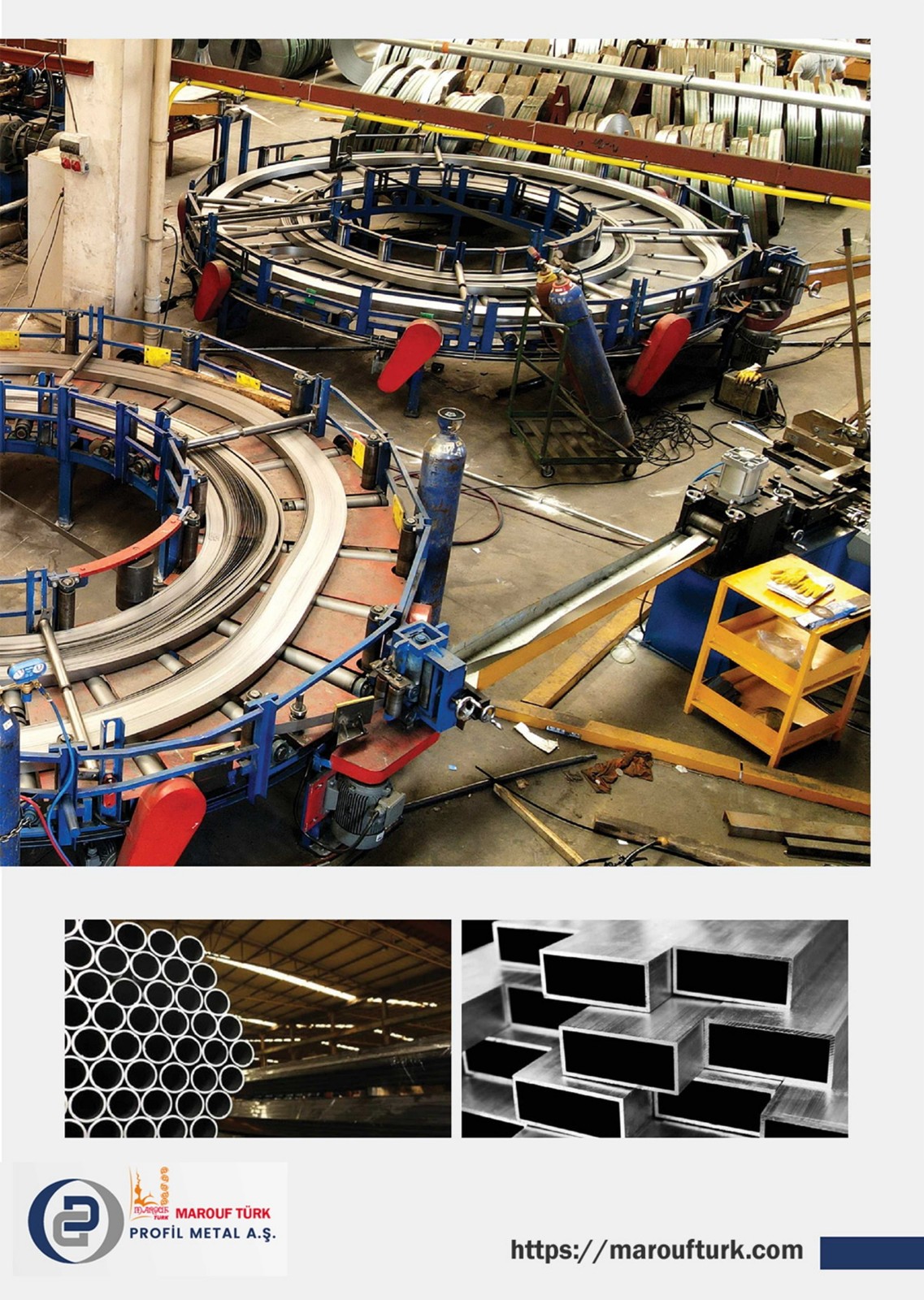

Tubes and hollow sections

The illustrated tube range lists diameters from 13 to 51 mm, profile sizes from 10 × 10 to 20 × 60 mm, and thicknesses from 0.50 to 2.0 mm. Round, rectangular and other shaped sections are shown. Confirm the exact section drawing, material specification, thickness and required length for each enquiry.

Ceiling and wall profiles

The roll-forming range includes ceiling U and C profiles, plus wall U and C profiles in the listed 50, 75 and 100 sizes. Catalogue thicknesses are 0.30–0.60 mm. Standard length is 3000 mm, with project enquiries within the stated 2000–4000 mm production range.

Corner beads and PVC reinforcement

• Plaster corner profiles: perforated and expanded-mesh corner types, 0.25–0.35 mm thick. Standard length is 2700 mm; the listed production range is 2000–3000 mm.
• Steel reinforcement for PVC systems: U, C, G and box profiles in different dimensions, 0.60–2.00 mm thick. Standard length is 6000 mm, with a stated 4000–6000 mm production range.

These ranges belong to separate product families. Match the chosen section to its intended system and confirm compatibility with the relevant assembly drawings.

Coil and sheet processing

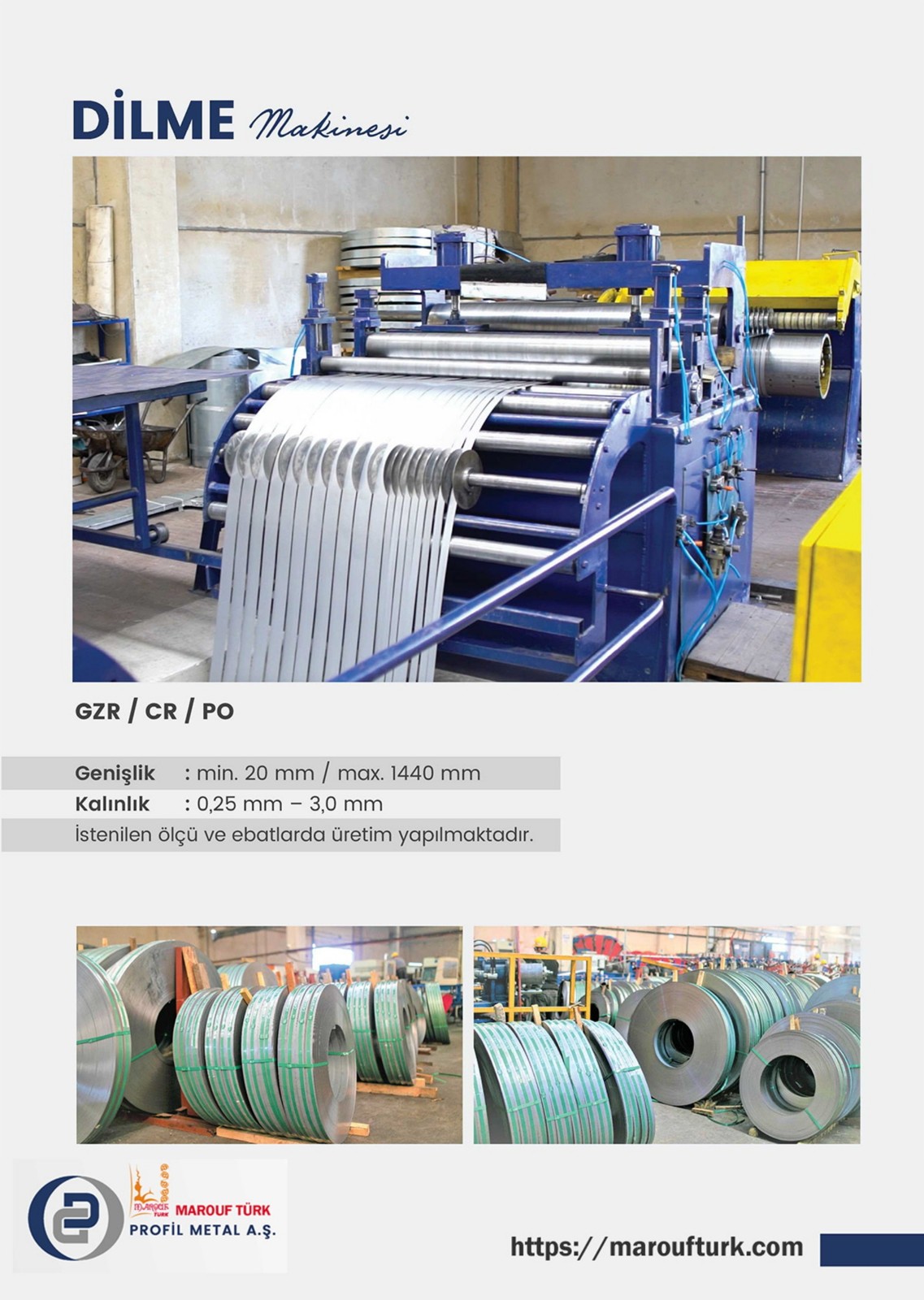

Slitting is listed for widths from 20 to 1440 mm and thicknesses from 0.25 to 3.0 mm. The cut-to-length line lists a 0.60–3.0 mm thickness range. These are processing capabilities; finished sheet dimensions, tolerances and material requirements should be specified separately.

Request an itemised quotation

Provide the section drawing or designation, steel grade, surface or coating requirement, wall thickness, cut length, quantity and delivery destination. Include any tolerances, packing requirements and project documentation needed. Confirm current production availability and the selected product specification with the quotation.

View the steel tube and profile catalogue.
