Facade Cleaning & Access Systems

Description

Façade cleaning and access systems provide equipment options for building maintenance projects. The Marouf Türk catalogue illustrates Ademsan suspended platforms, roof suspension arrangements, monorail systems, skylight access equipment and roof-mounted machines, with model drawings and project examples.

Suspended working platforms

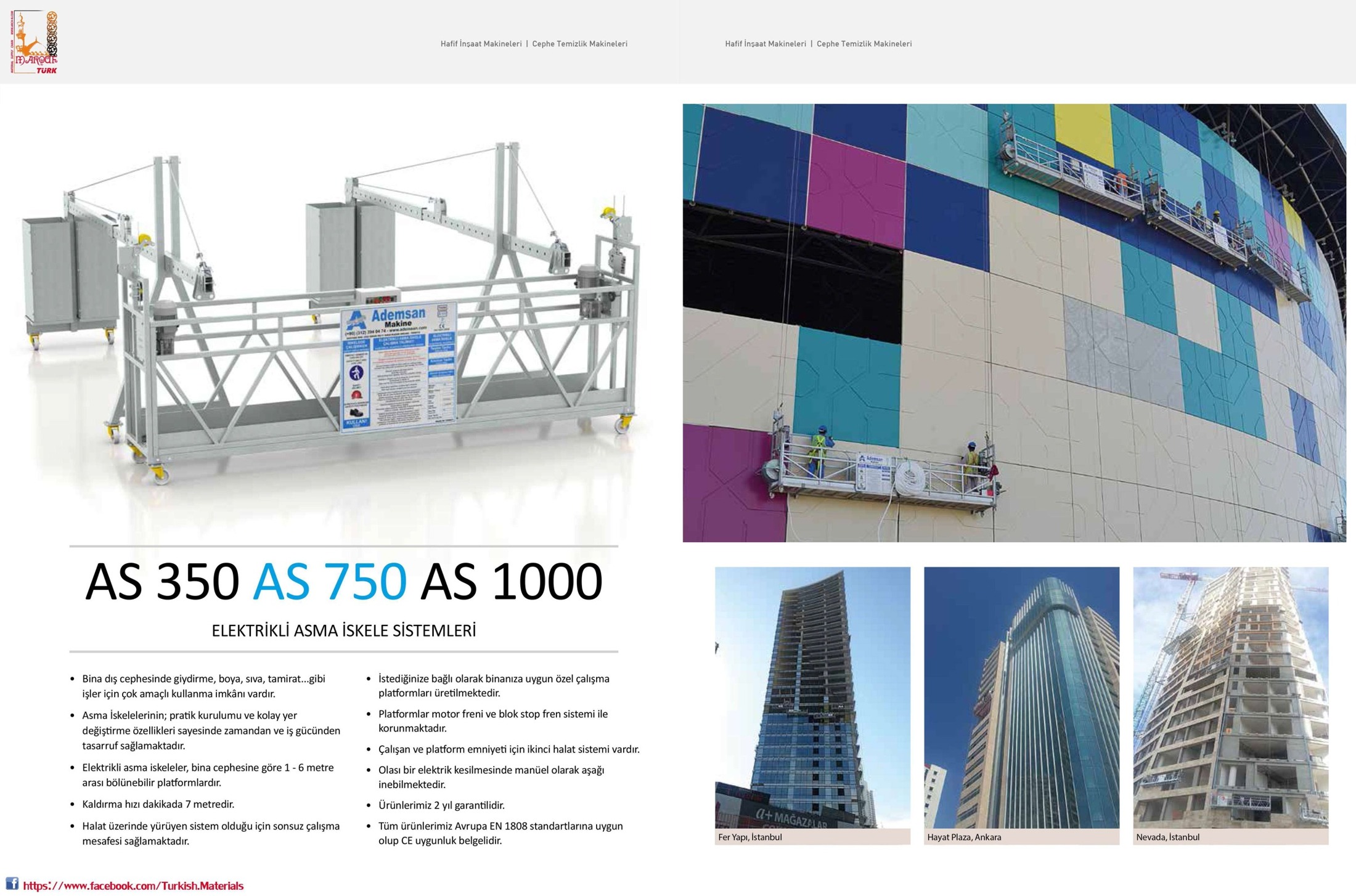

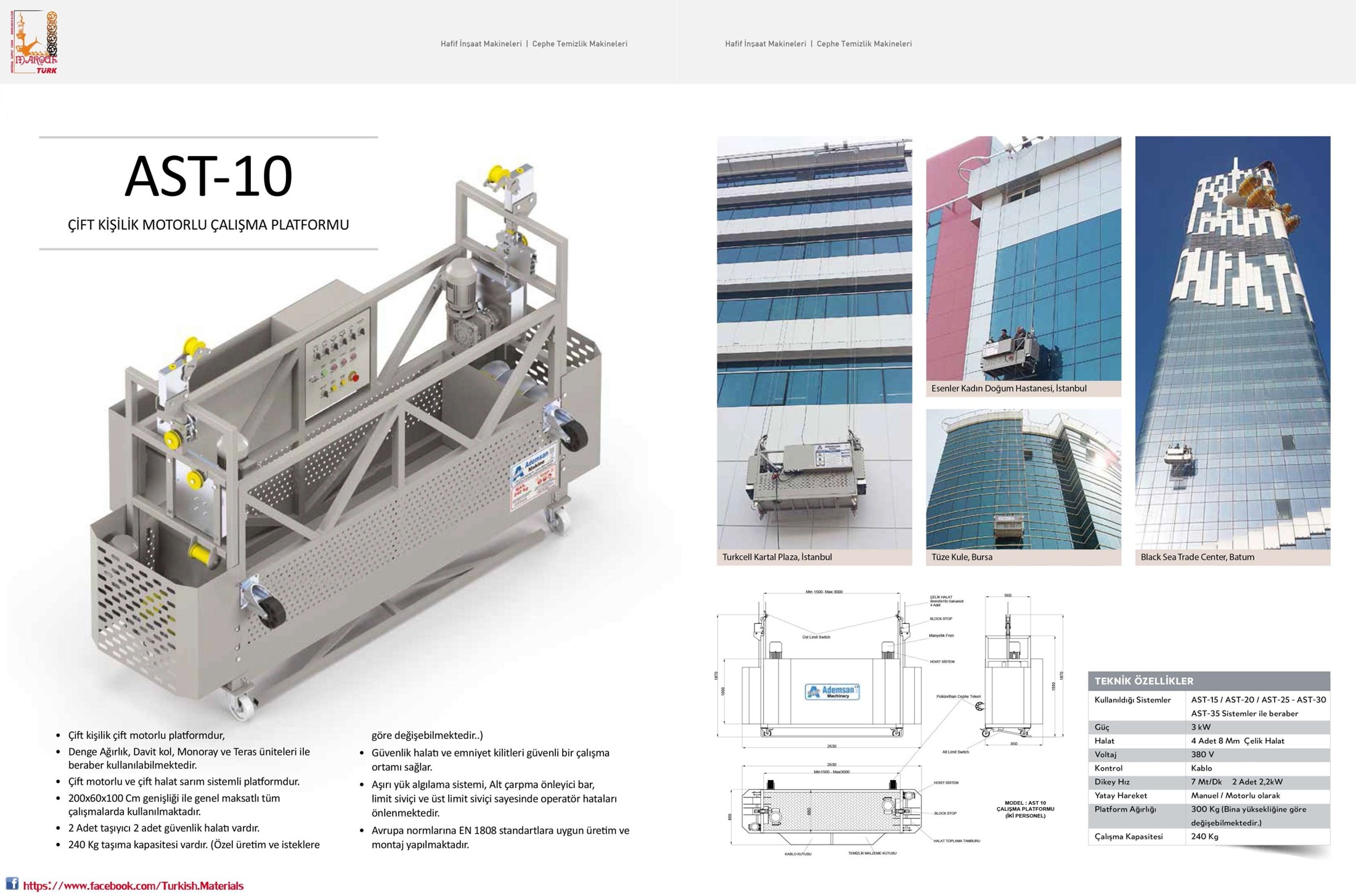

The catalogue includes AS 350, AS 750 and AS 1000 electric suspended scaffold systems, alongside platforms made for particular façade geometries. The AST range shows single-person AST-5 and two-person AST-10, AST-10-01, AST-12 and AST-12-01 platform arrangements. Select the model against the required working area and the engineered support system.

Roof and façade access arrangements

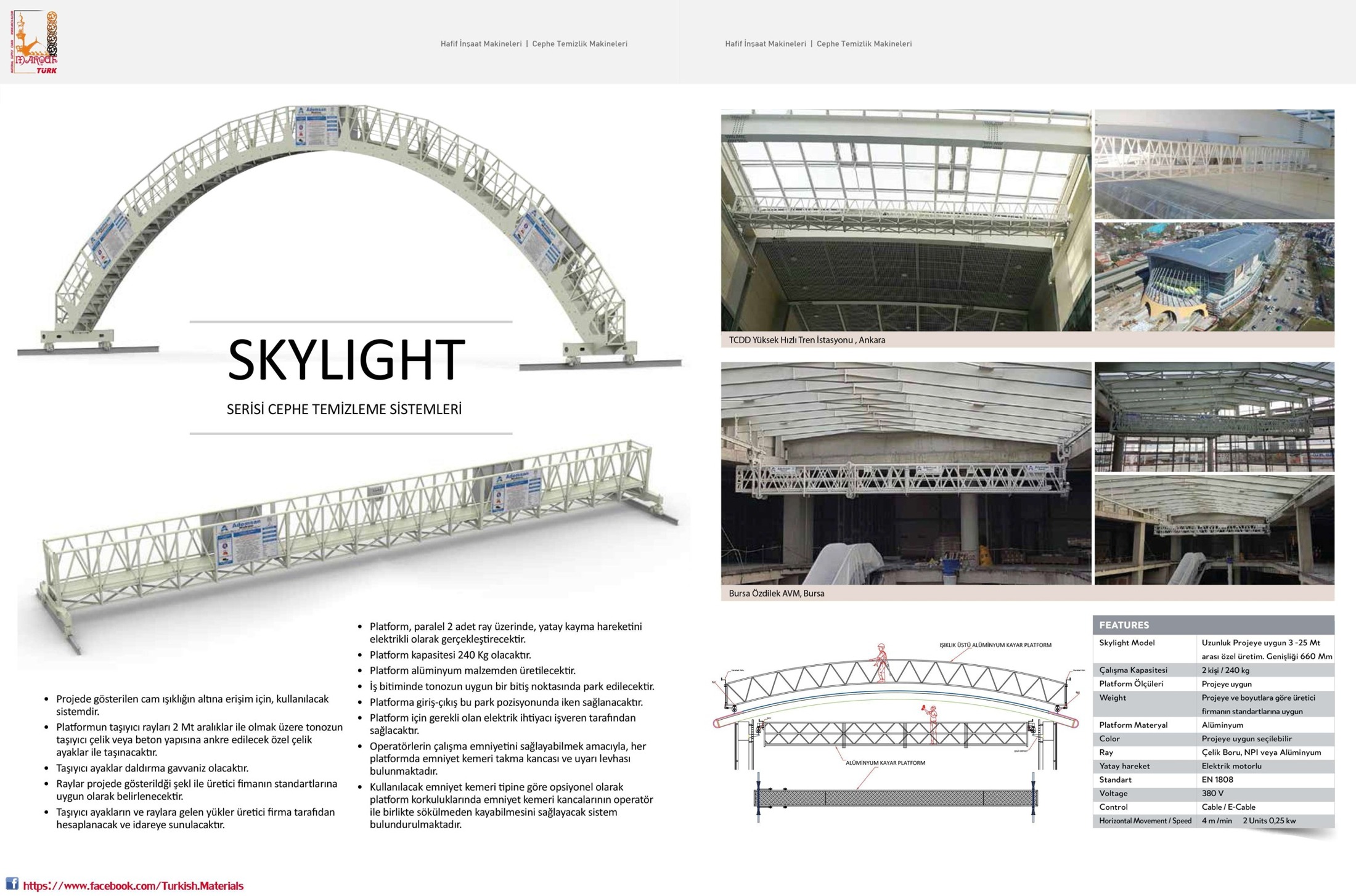

• SKYLIGHT access bridges and equipment for glazed roof areas.
• AST-15-01 counterweight suspension and AST-15-02 façade access arrangements.

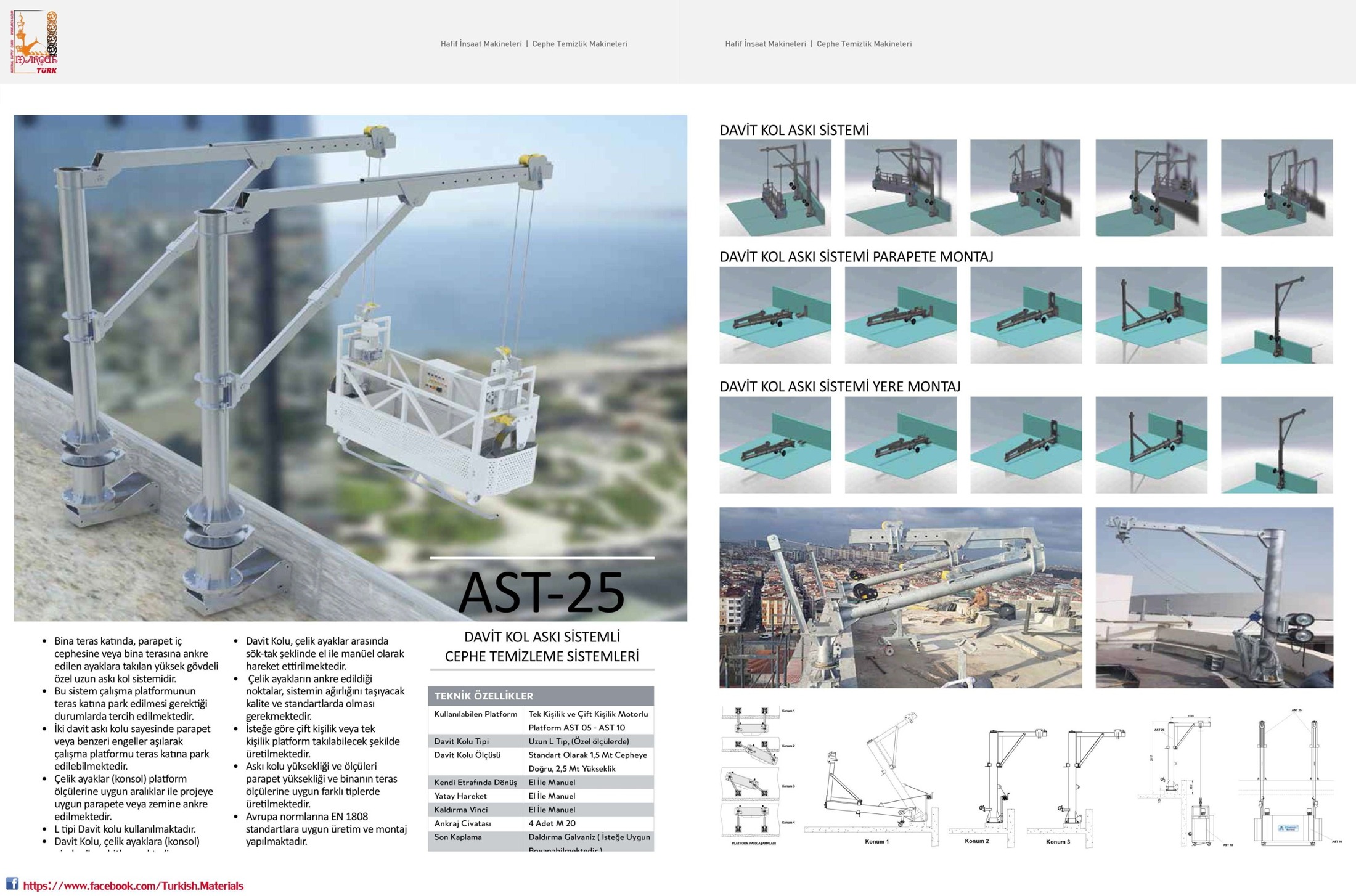

• AST-20 davit suspension and AST-25 davit-arm systems.

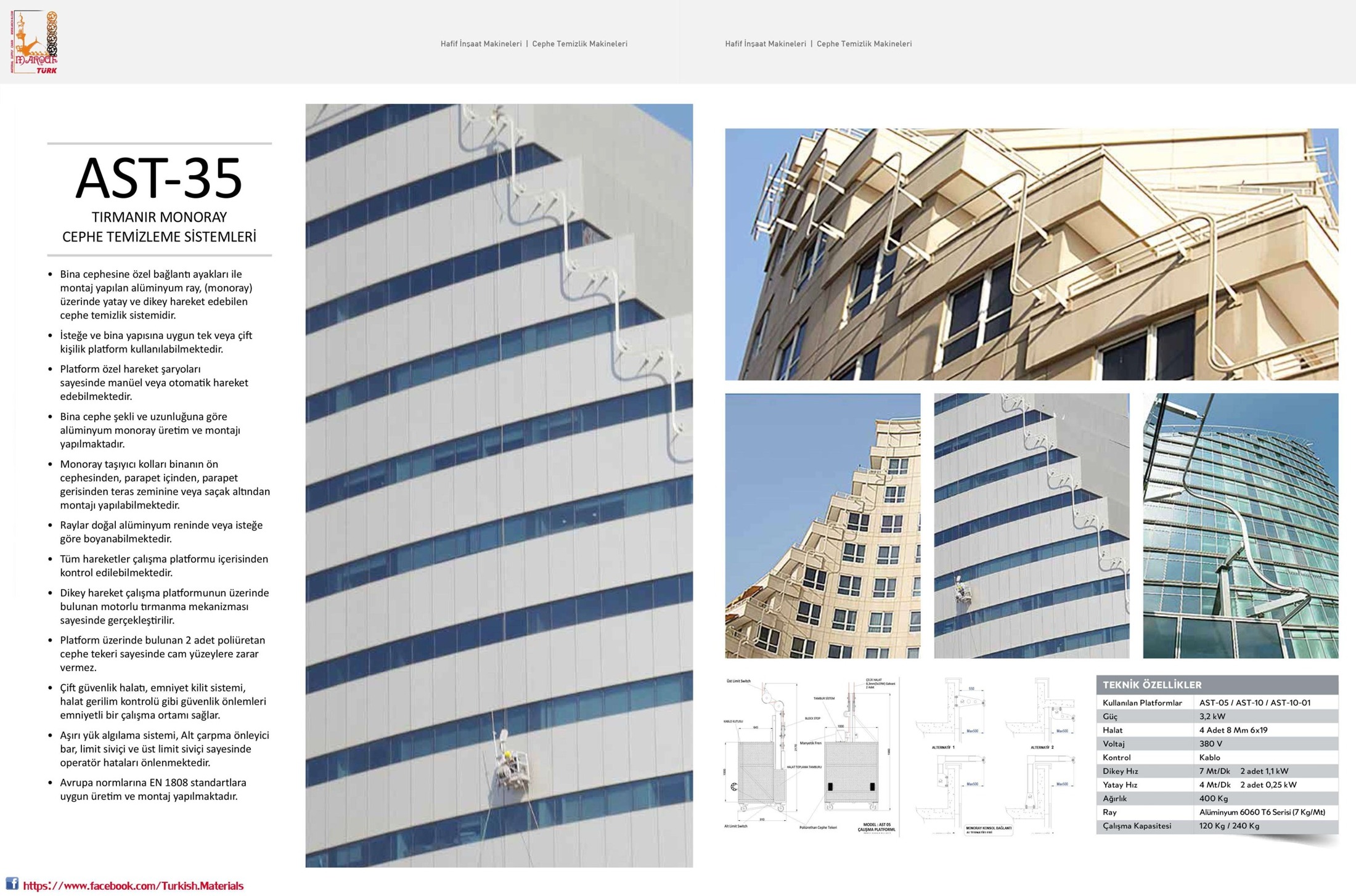

• AST-35 climbing monorail arrangements.

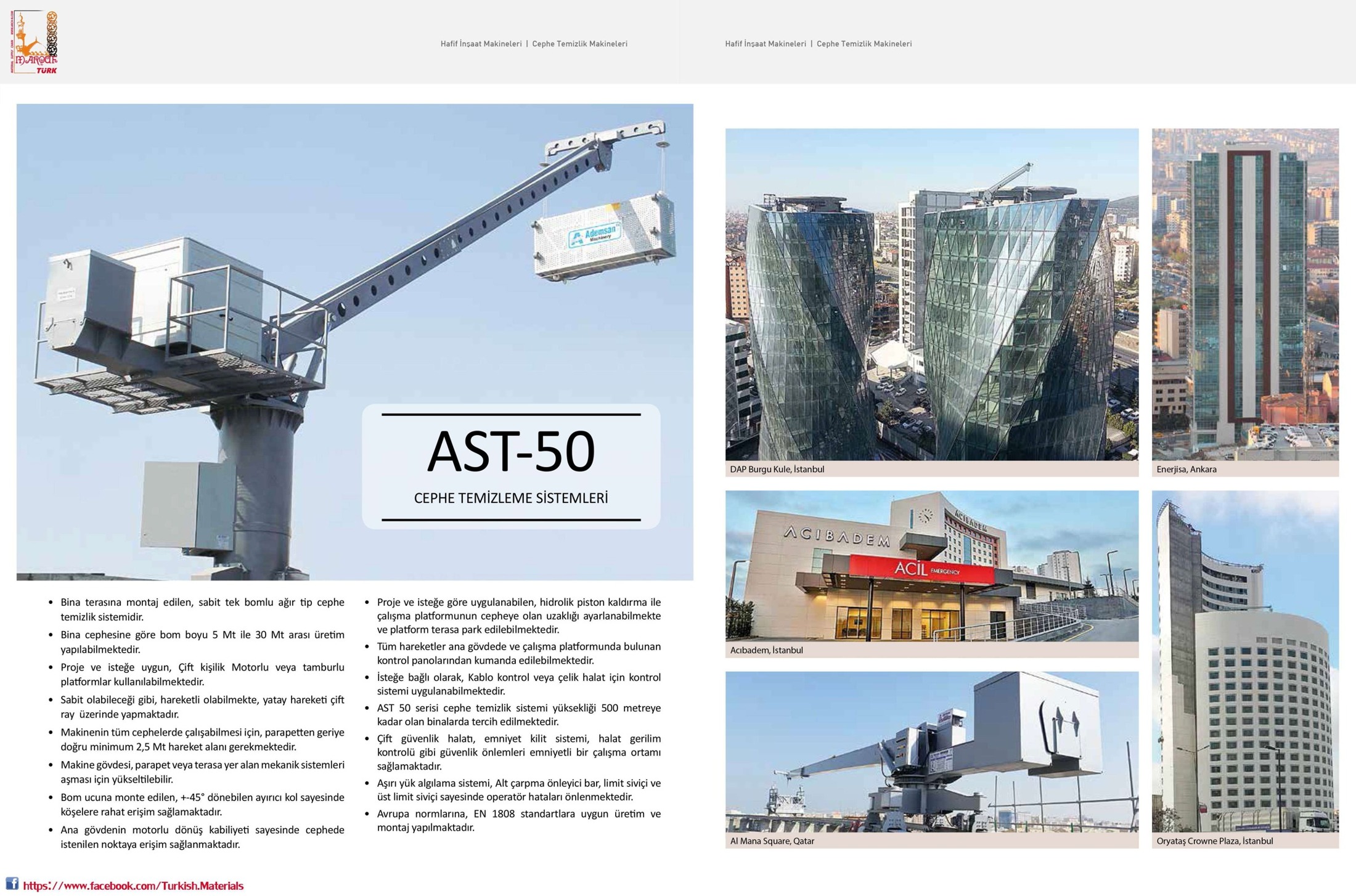

• AST-40, AST-45, AST-50, AST-60 and AST-70 roof-mounted façade cleaning systems.

These model families cover different building and roof layouts. The catalogue also shows façade restraint components, monorail profiles, control equipment, lifting mechanisms and wire ropes. Components must be selected as part of the specified assembly.

Building-specific selection

Working height, outreach, roof access, parapet geometry, façade recesses and available structural support affect the proposed arrangement. The catalogue contains separate model data; a load capacity or dimension shown for one configuration should not be applied to another. Confirm the selected model, support loads, operating limits and installation documentation for the project.

Request a quotation

Provide roof plans and elevations, building height, required reach, façade geometry, intended maintenance tasks, number of operators and equipment quantities. Include the proposed mounting locations, power supply, site conditions, delivery programme and required inspection or handover documents. Marouf Türk can coordinate an enquiry around these details and the selected catalogue references.

View the façade cleaning systems catalogue. Final equipment specifications, installation scope and availability are confirmed with the project quotation.
