WC intelligente

Descrizione

Smart W.C. Self-Cleaning Public Toilet Units

Smart W.C. from Marouf Türk is a range of standalone public toilet units presented in the catalog as The Revolving Toilet by Sanitronics. The system combines a user compartment with a separate technical cleaning area. Available layouts include a compact single toilet, an accessible single toilet and a combined two-room unit, allowing project teams to compare space requirements before specifying an installation.

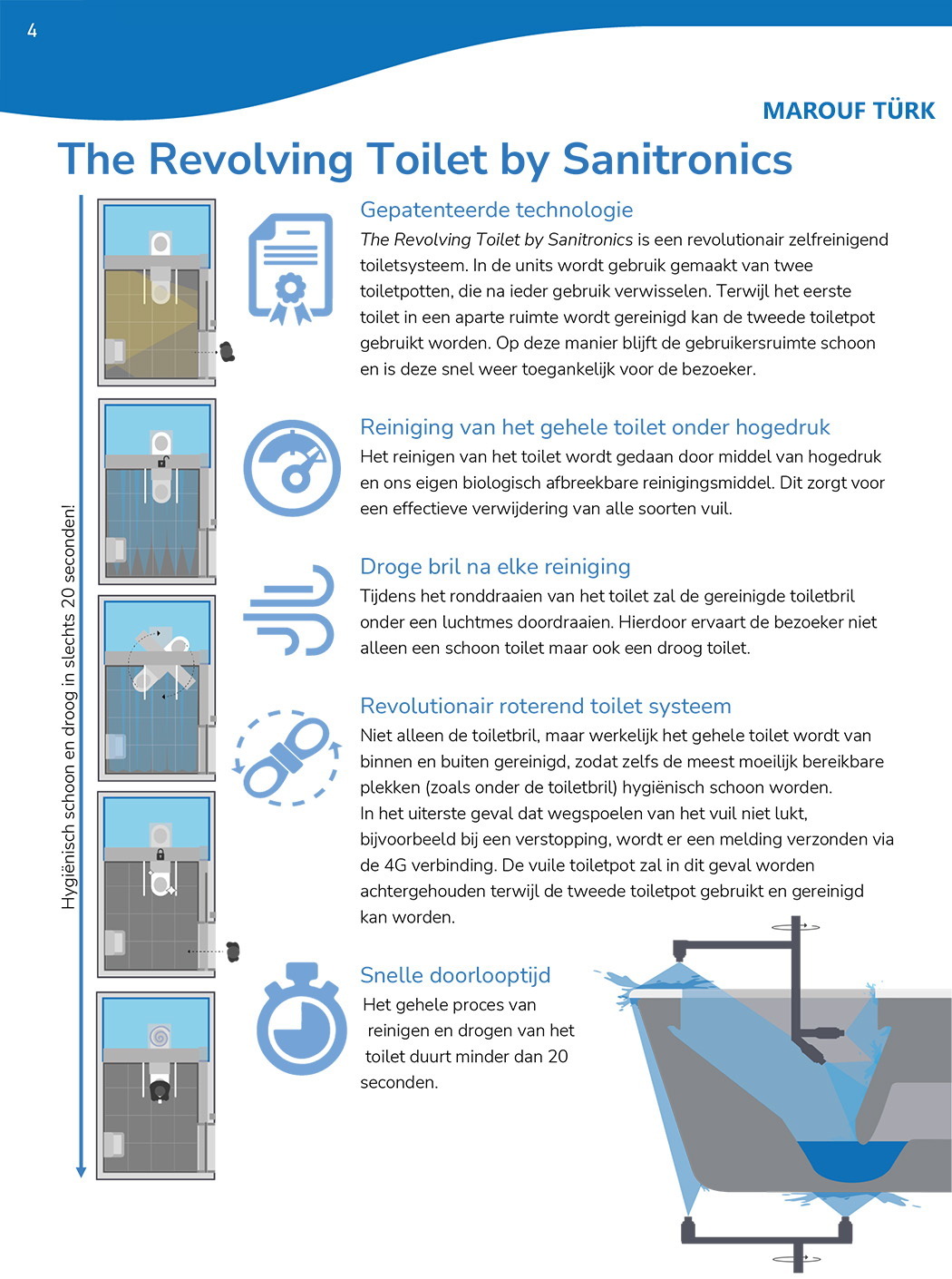

How the Revolving Toilet Works

The catalog describes two toilet bowls that alternate after use. One bowl moves into the separate cleaning area while the other becomes available in the user compartment. High-pressure cleaning and the specified cleaning agent wash the toilet, and the seat passes beneath an air knife during rotation. The catalog states a cleaning and drying cycle of less than 20 seconds; this is a supplier-stated performance figure to confirm for the proposed configuration.

The system is described as cleaning the inside and outside of the bowl. If a cleaning problem such as a blockage occurs, the catalog describes a notification through a 4G connection and retention of the affected bowl while the second continues in service. Connectivity, monitoring arrangements and service response should be defined for the installation.

TRT Standalone Layouts

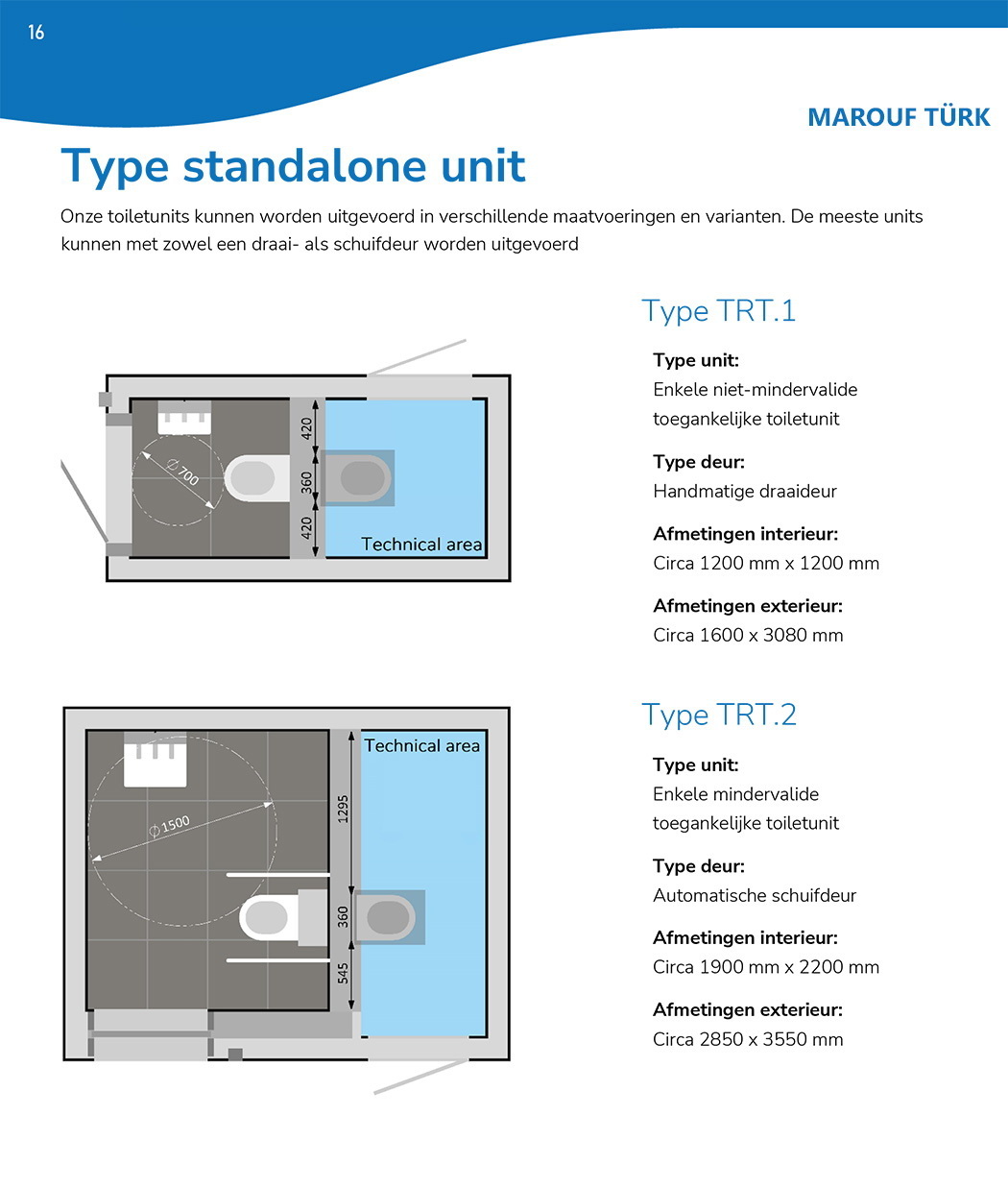

• TRT.1: compact single unit with a manual hinged door. The catalog gives an approximate 1200 × 1200 mm interior and 1600 × 3080 mm exterior footprint. This is the standard layout rather than the accessible version.
• TRT.2: accessible single unit with an automatic sliding door. Approximate interior dimensions are 1900 × 2200 mm, with an exterior footprint of 2850 × 3550 mm.

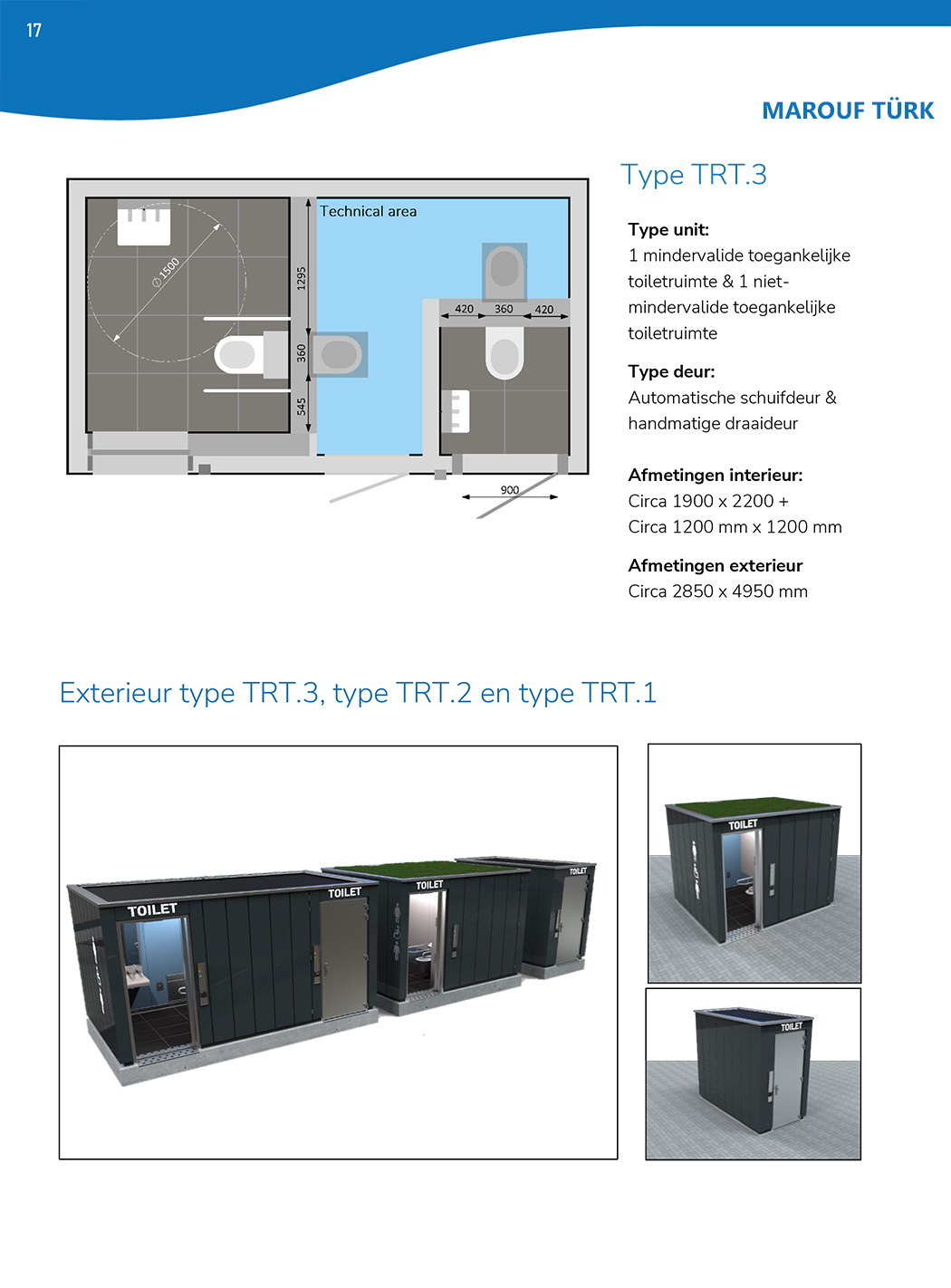

• TRT.3: one accessible room and one standard room, using an automatic sliding door and a manual hinged door. Listed interiors are approximately 1900 × 2200 mm and 1200 × 1200 mm; the exterior footprint is approximately 2850 × 4950 mm.

Interior Features and Exterior Choices

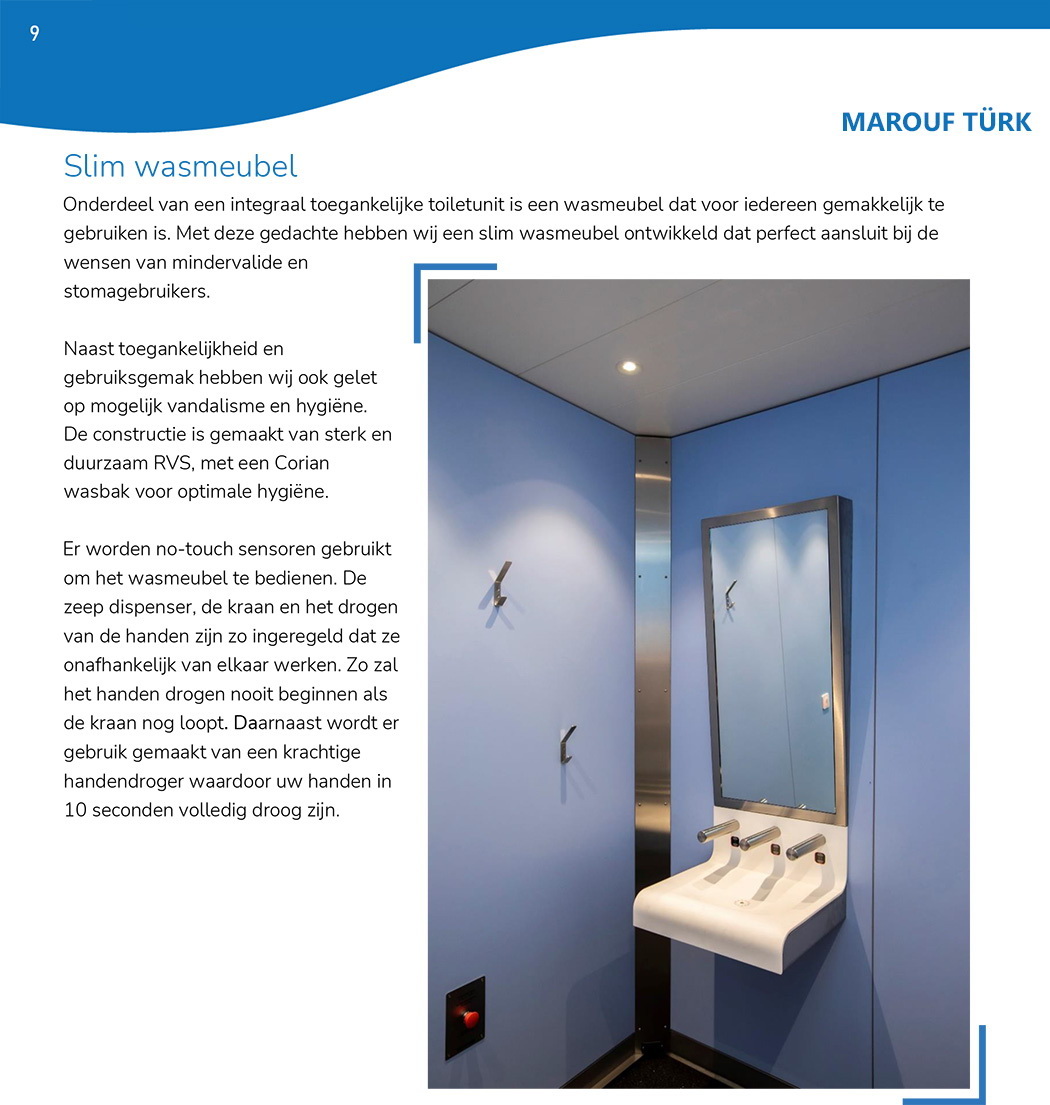

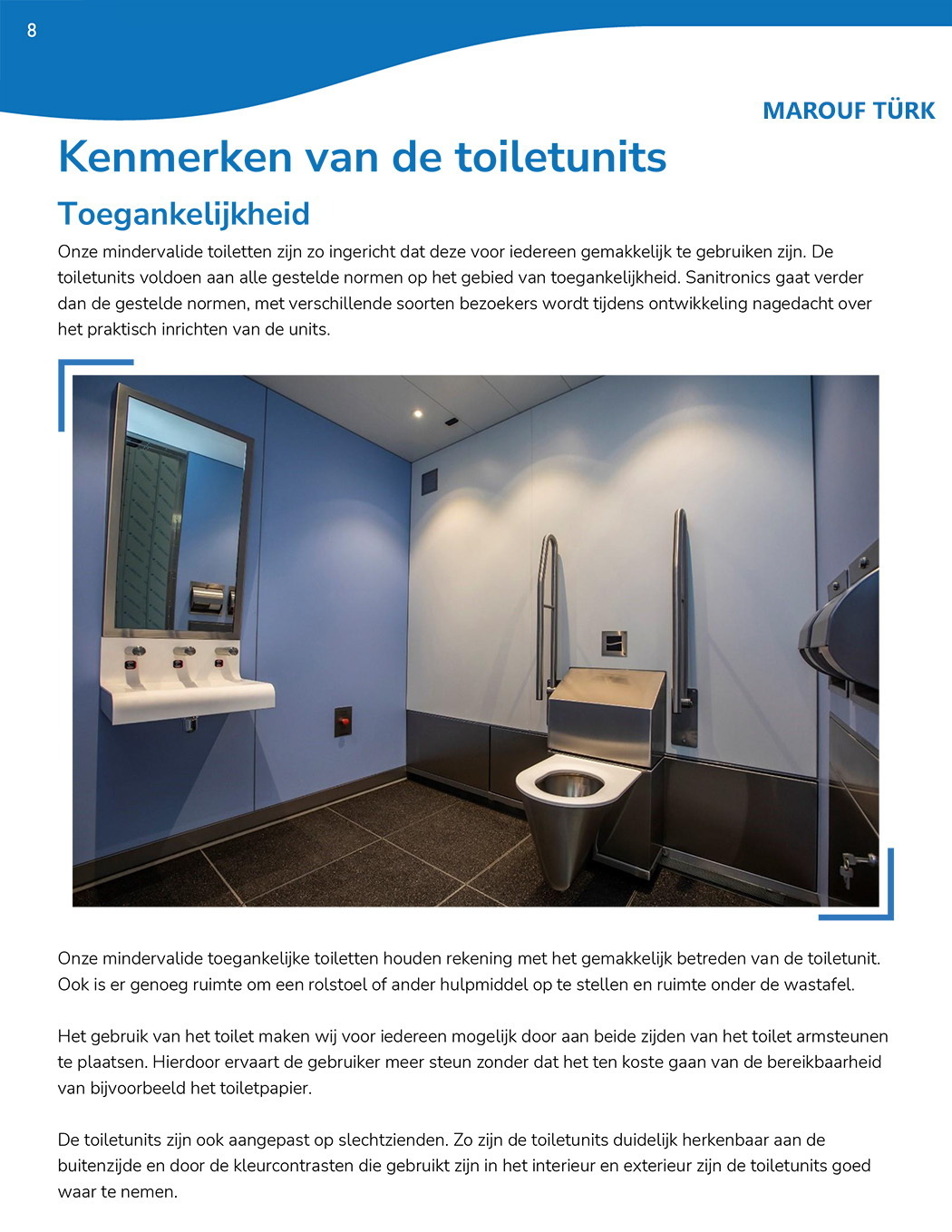

The accessible interior examples show support rails beside the toilet, space for wheelchair movement and clearance below the washbasin. The catalog also presents a stainless-steel wash station with a Corian basin and touch-free operation for soap, water and hand drying. Confirm the included fittings and the approved accessibility layout for the destination and site.

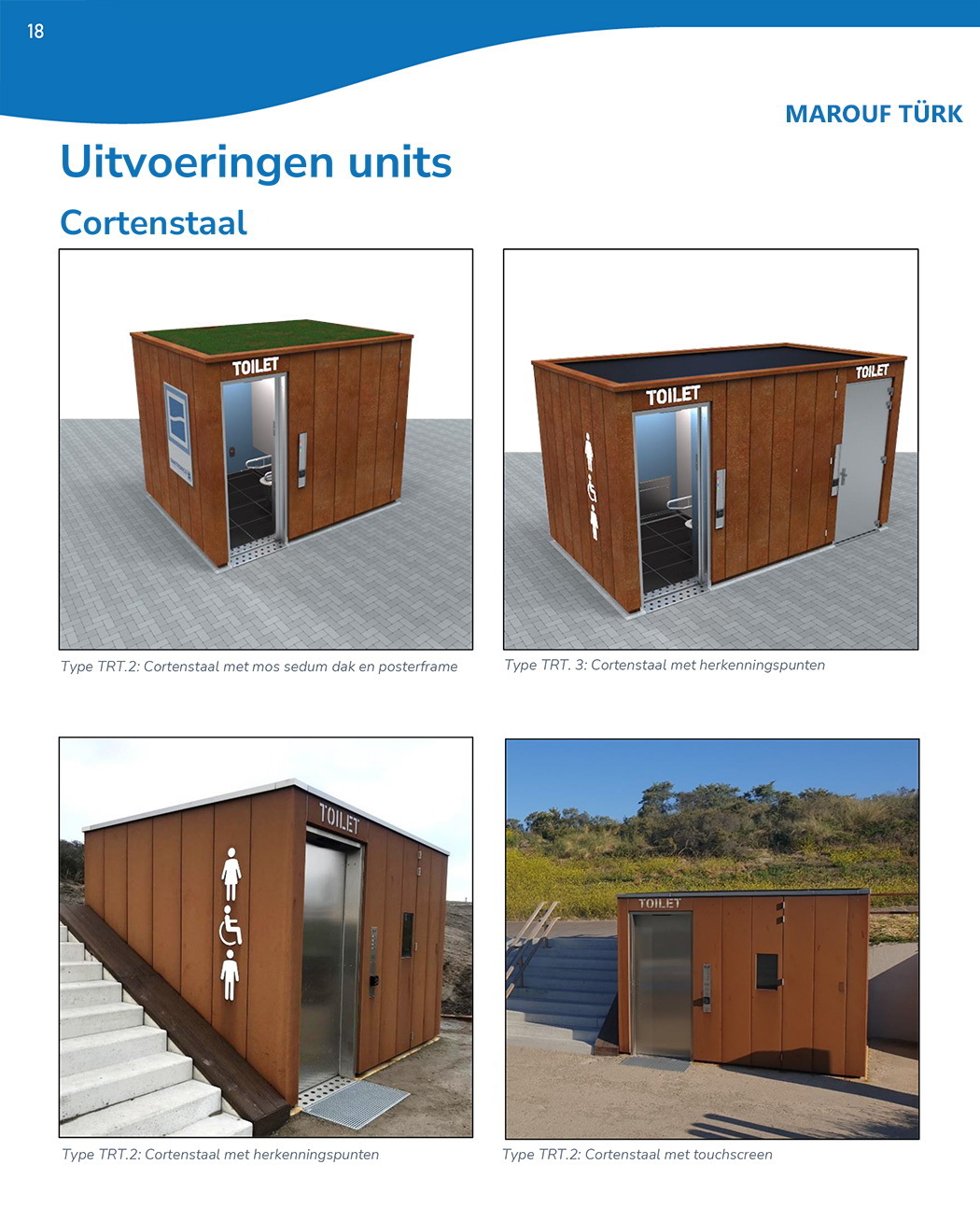

Exterior examples include Corten steel cladding, identifying symbols, touchscreen arrangements and a sedum roof option. These examples illustrate possible configurations, and the selected finish, roof and controls should be itemized in the project quotation. The gallery includes both floor plans and installed-unit photographs to support the design discussion.

Planning and Quotation

Use the Smart W.C. catalog to compare the original layouts. For a proposal, provide the preferred TRT type, site plan, number of units, intended usage, accessibility requirements, exterior finish and destination. Water, drainage, electricity, communications, foundation work and maintenance access should be coordinated with the final installation documentation. Marouf Türk can confirm current supply scope, installation responsibilities, service provisions, delivery terms and lead time for the selected configuration.
