PE Pipe Fittings & Irrigation Valves

الوصف

PE pipe fittings and irrigation valves from the Marouf Türk catalogue support water distribution, landscape and agricultural irrigation enquiries. The main connection-adapter range is described as polypropylene fittings for polyethylene pipes. The catalogue also includes threaded accessories, clamp saddles, valves and drip-irrigation components.

Compression connection fittings

The blue-collar range includes equal and reducing tees, elbows, reducing elbows, and male or female threaded transitions. Select the pipe outside diameter and the thread size separately when specifying a transition fitting. Connection options and packing quantities vary by item code.

The catalogue describes rubber sealing rings and ISO 228-1 threads for the connection-adapter range. Confirm pipe dimensions, pressure and temperature conditions, seal compatibility and the selected fitting specification before ordering. Ratings must be checked for the individual assembly rather than applied to every valve and accessory in the collection.

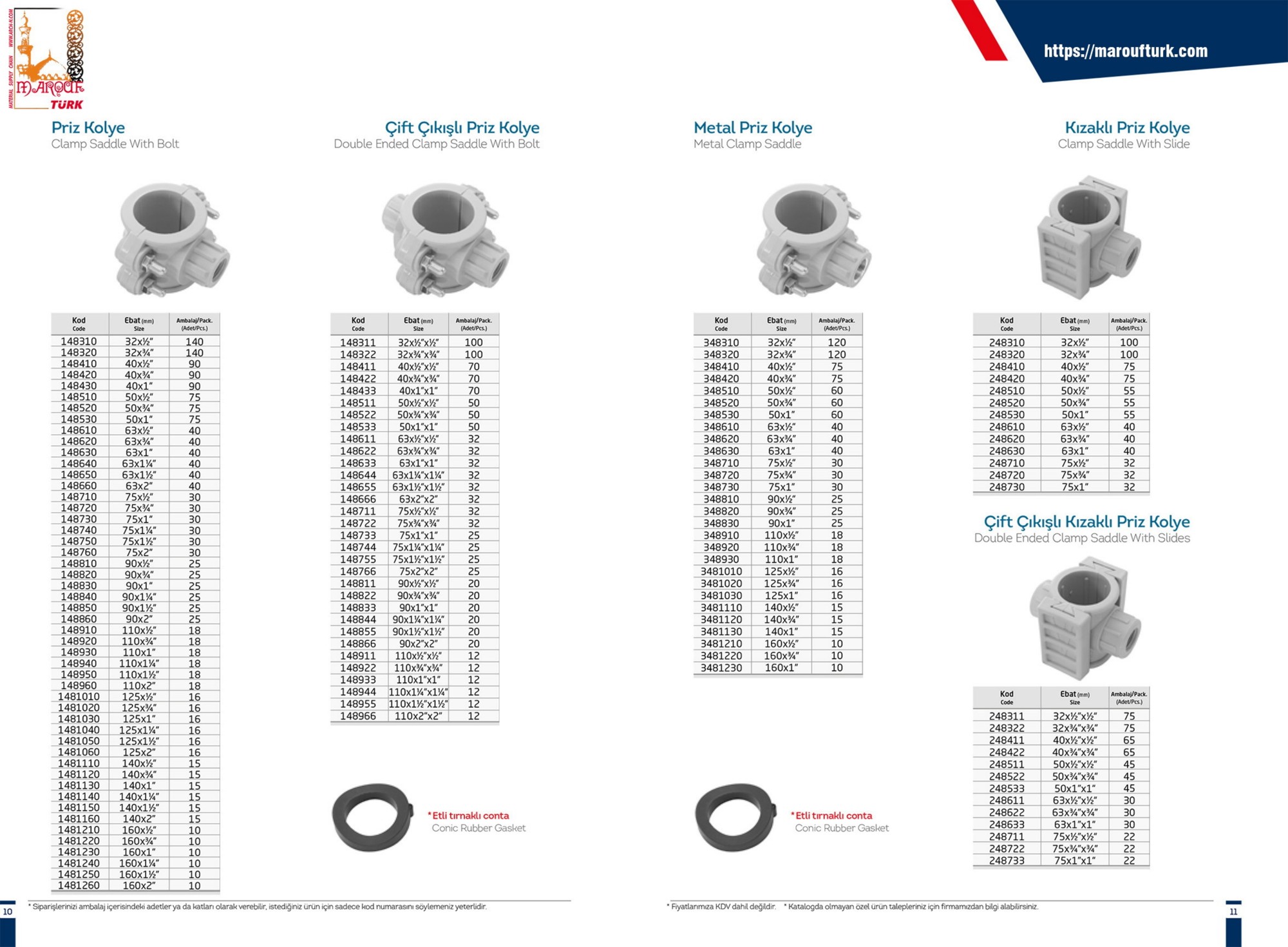

Clamp saddles and valves

• Clamp saddles: standard, steel-ring, metal and square-body variants, with separate sealing rings and outlet sizes.
• Ball valves: plastic-ball and metal-ball families with compression-to-compression, compression-to-thread and threaded-end arrangements.
• Orange metal fitting range: male and female adapters, tees and elbows, shown separately from the blue-collar collection.

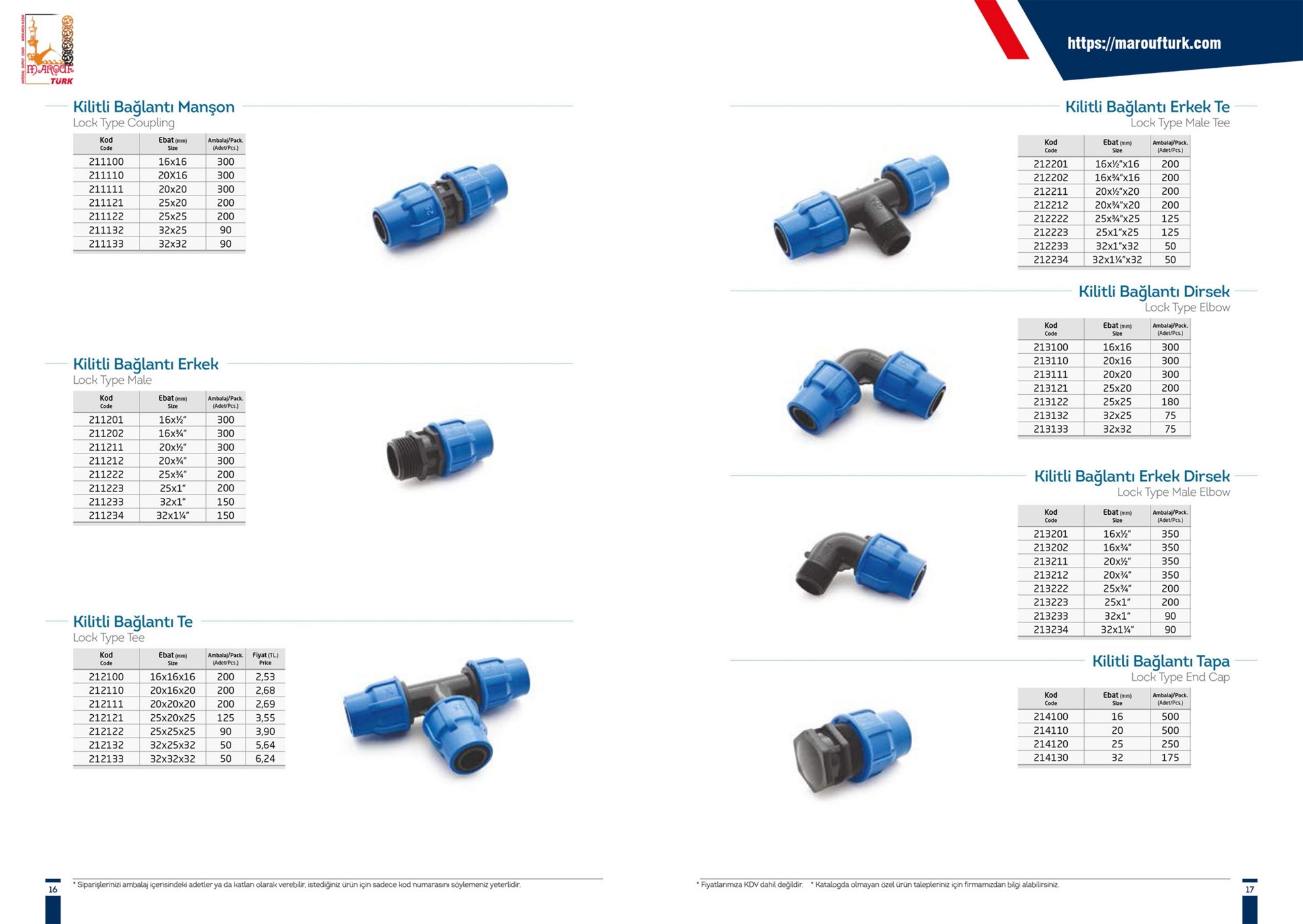

Locking and drip-irrigation connections

The locking range includes couplings, threaded adapters, tees, elbows and end caps. Mini valves are shown with locking connections and male threaded variants. The drip-irrigation accessories include mini valves, nipples, tees, elbows, end closures, gaskets and a pipe-punching tool.

Installation and order details

The catalogue illustrates pipe-end preparation, ring placement, insertion and tightening for its compression adapters, plus a separate assembly sequence for clamp saddles. Use the current manufacturer instructions for the selected item and protect components from sharp objects during storage and installation.

For a quotation, provide the pipe material and outside diameter, required connection type, thread sizes, working pressure and water temperature, valve arrangement, item codes, quantities and delivery destination. State any potable-water approval or other project documentation required so that suitability can be confirmed for the exact product.

Catalogue prices and packing schedules are reference information. Confirm current availability, compatibility and the final quotation before procurement.

View the pipe fittings and irrigation catalogue.
