Steel Door Faces

الوصف

Steel Door Faces and Embossed Door Sheets

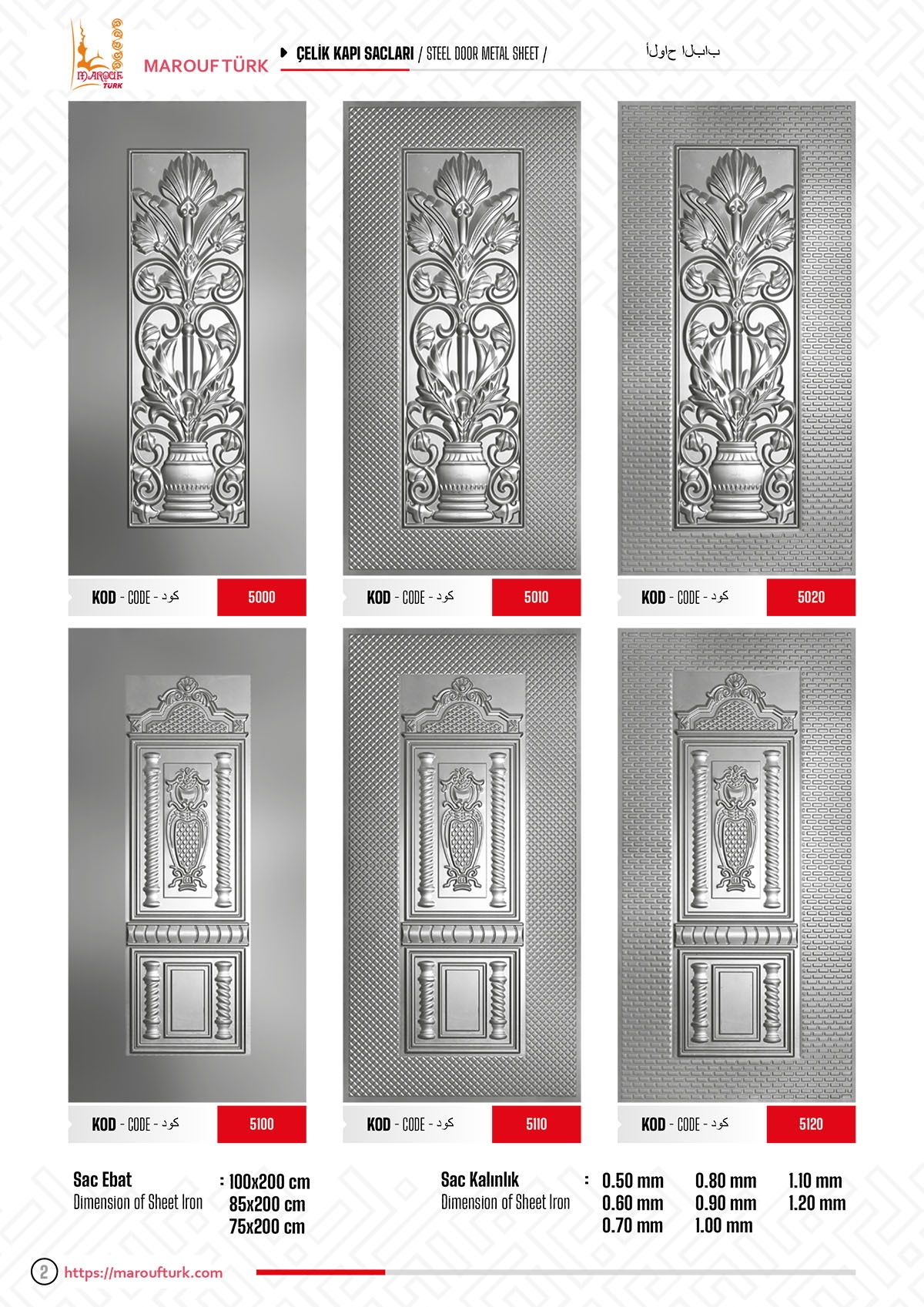

Explore decorative steel door-face sheets for door manufacturing through the original Marouf Türk metal-sheet catalog. The door-face section presents embossed ornamental, classical and geometric designs, with plain or patterned surrounding surfaces. Select the required sheet by its design code, dimensions and thickness before confirming the fabrication specification.

Design Codes and Surface Patterns

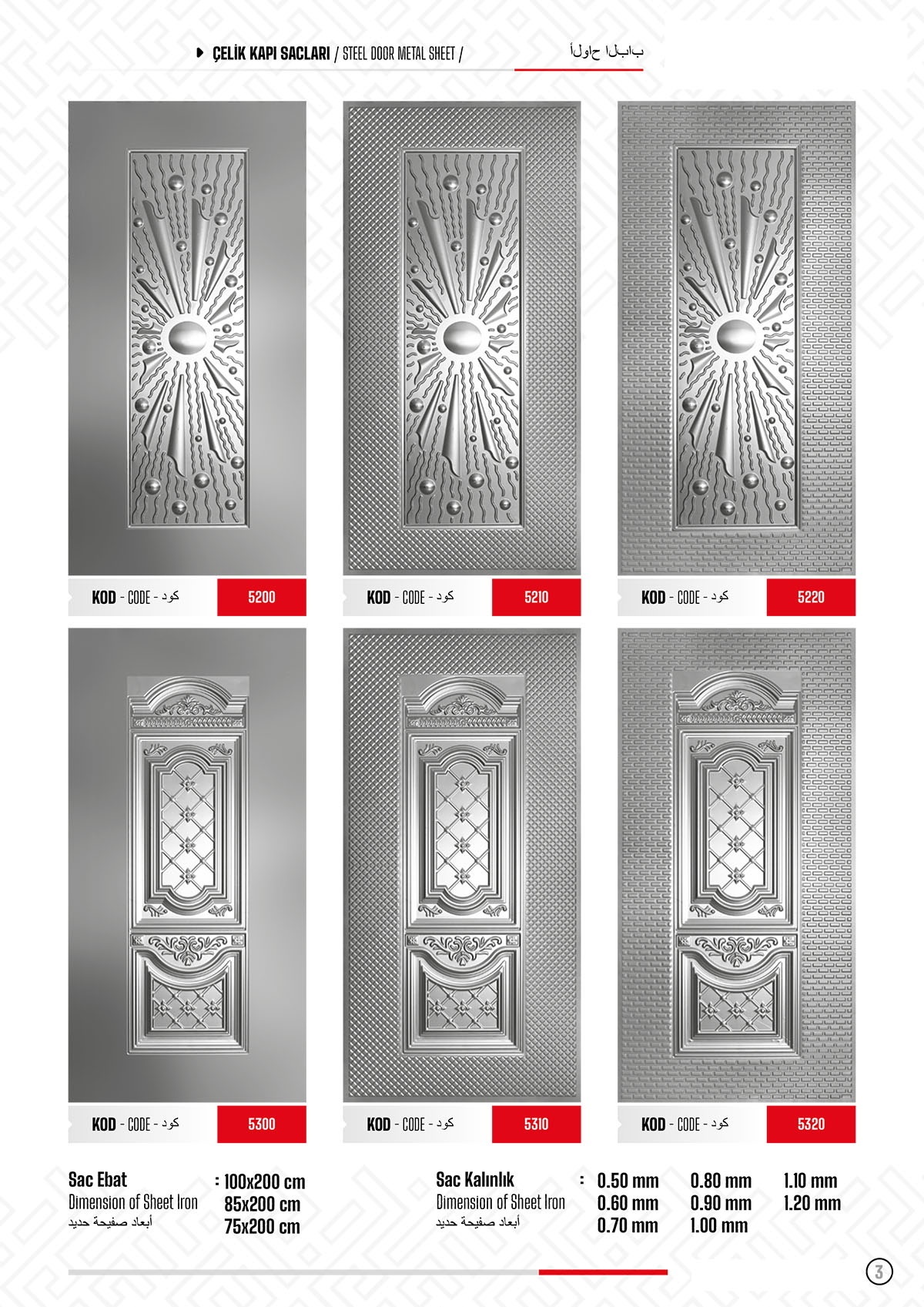

Illustrated references include the sunburst designs 5200, 5210 and 5220 and classical decorative designs 5300, 5310 and 5320. Within these groups, the central design is shown with different surrounding textures. The gallery also includes geometric panels, modern repeated patterns and rectangular-panel designs.

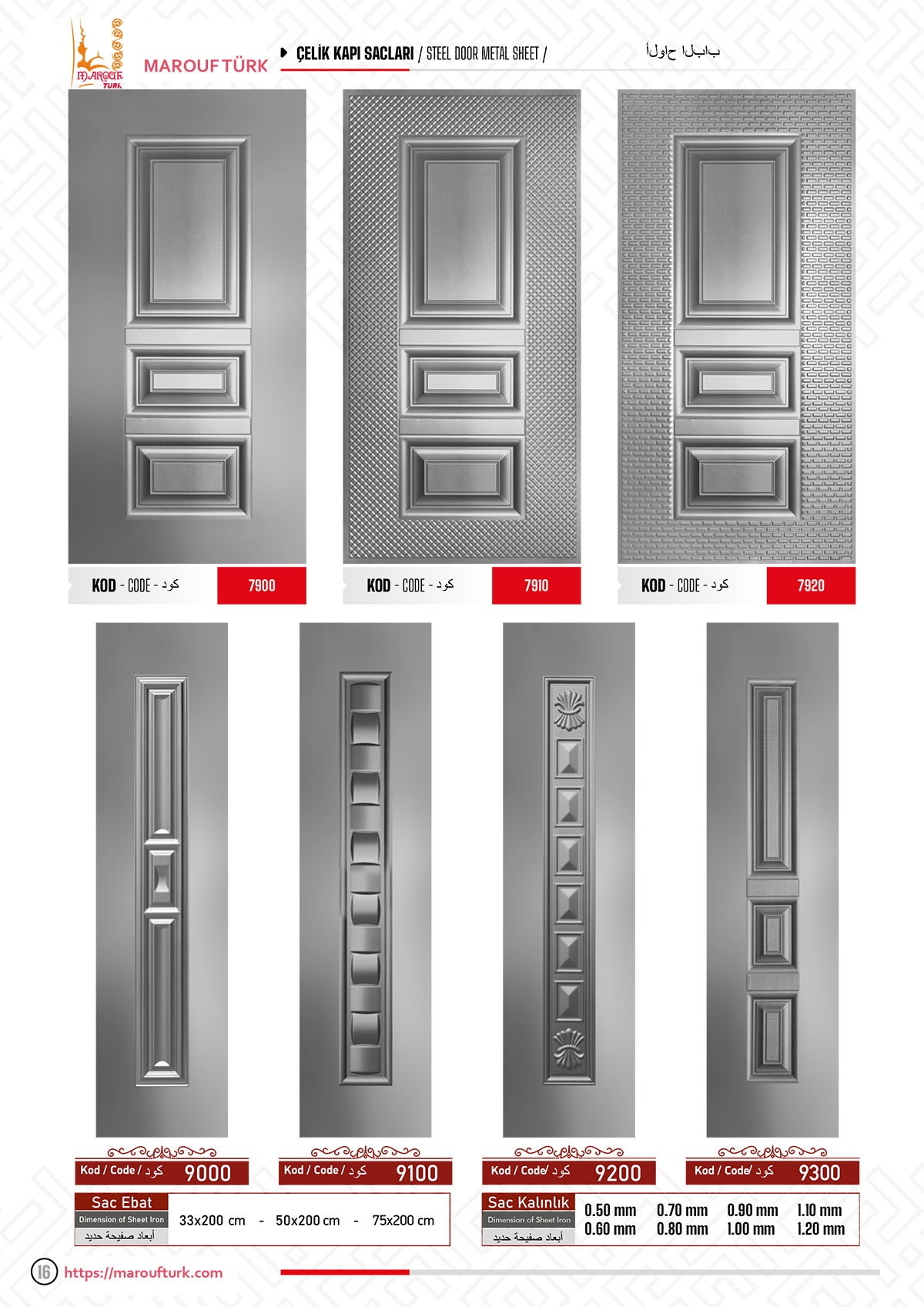

The catalog presents panel references 7900, 7910 and 7920 alongside narrow decorative inserts coded 9000, 9100, 9200 and 9300. Use the exact code and an approved drawing or sample to avoid confusing a full door-face sheet with a narrower insert.

Catalog Sheet Sizes and Thicknesses

The main door-sheet pages list nominal sheet sizes of 100 × 200 cm, 85 × 200 cm and 75 × 200 cm. The narrow-insert page lists 33 × 200 cm, 50 × 200 cm and 75 × 200 cm. Confirm which size applies to the selected design and the required trim allowance.

Listed thickness options run from 0.50 to 1.20 mm in 0.10 mm increments. These are catalog options; the quotation must confirm the chosen code, sheet size, thickness and current availability together. The catalog does not establish that every design is available in every combination.

Prepare the Fabrication Specification

• Identify the design code, background texture and quantity.
• Specify sheet dimensions, thickness and required material grade or finish.
• Provide cutting, bending, edge-return and fixing details where required.
• Mark any handle, lock, viewer or other openings on the approved drawing.
• State the coating or finishing process, packing requirements and delivery destination.

A door-face sheet is one component of a door assembly. Locks, hinges, frames, core construction and any required fire or security performance must be specified for the complete door separately. The decorative sheet catalog does not certify a finished door assembly.

Original Steel Door-Face Catalog

View the original 29-page steel door-face catalog. The gallery focuses on door-sheet designs. Later pages show other metal products, profiles and gate hardware, which are separate from the scope of this page.

Request a Manufacturing Quote

Send the selected design codes, sheet sizes, thicknesses, quantities and fabrication drawings. Include any finish or inspection requirements and the target delivery schedule. The quotation can then identify the proposed sheets, processing scope, packing and commercial terms.
